Styrene-Butadiene Rubber Gaskets are cut from rubber sheets or mould pressing. Any sizes and shapes can be produced. Whether you need one part, or one million parts, our gasket division can cut just about any size and shape that you can imagine, from just about any material.

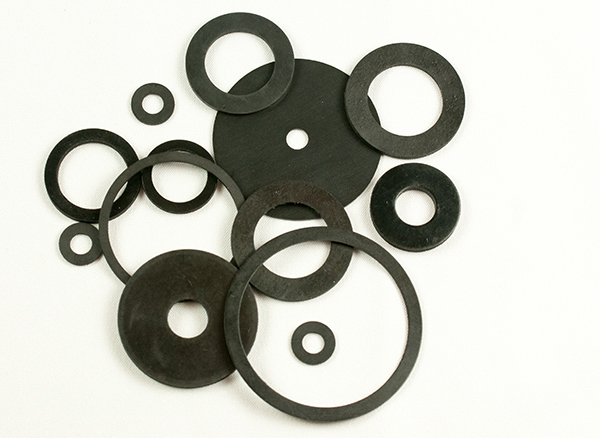

Styrene-Butadiene Rubber Gaskets
Description: Rubber is the most cost-effective material to use where temperatures and pressures are lowand
the chemical environment is mild. Different elastomers offer different mechanical and chemical properties. Cloth
inserted materials are better able to handle movement and high compression loads.
Rubbergasket is cut or molded from NBR, SBR, CR, EPDM. Some rubber gasket have resisttance of oil, Some
rubber gasket is used in cold fever, Some rubber gasket has anti-aging properties.There are various shapes of
rubber gasket. Rubber gaskets are widely used in medicine, electronics, Chemical, anti-static, fire-retardant, food
and other industries.Other rubber gaskets: neoprene rubber gaskets, natural rubber gaskets, EPDM rubber
gaskets, acrylicplastic rubber gaskets and other special rubber gaskets.
SBR (Styrene-butadiene): SBR is a copolymer of styrene and butadiene and has properties similar to Natural Rubber.
It has good abrasion resistance, excellent impact strength, very good resilience and a high tensile strength.
Silicon Rubber Gasket: Silicon rubber gasket(FDA Materials Approved) has outstanding low-temperature-resistant
high-performance. BIK-silicon rubber gasket can be used in -70℃ - +260℃ temperature range. Silicon rubber gasket
maintain good use of bombs.
Nitril-butadiene rubber gasket(NBR): It is Nitril butadiene copolymer from the emulsion polymer. Nitril-butadiene
rubber gasket BIK-30207B has excellent oil resistance(but intolerance ketones, esters and chlorinated hydrocarbons,
and other media). It also has a good abrasion resistance, anti-aging and air tightness and therefore the application
of the rubber industry Wide.
Fluorine Rubber Gaskets：Fluorinerubber gaskets can be used in a high temperature from -30℃ to +250℃. It has
the use of the environment, resistant to strong oxidant, oil. And normally, Fluorine rubber gaskets are used for high
temperature, high vacuum and high-pressure environment. Fluorine rubber gaskets is also suitable for oil environment.
As with all high-performance, fluorine rubber is widely used in petroleum, chemical, aviation and aerospace sectors.
Other rubber gasket: Neoprene Rubber Gasket(CR), Natural Rubber Gasket(NR), EPDM Gasket, ect.
Main Specification of Rubber Gasket：
| Material | Temp. (F) | P Max (psi) |
Thick. (in.) |
Applications/Features |
|---|---|---|---|---|
| Butyl | -40 to 225 | 150 | 1/16 to 1/4 | Gases, inorganic acids & alkalis. Excellent weather/abrasion resistance. |
| EPDM | -40 to 212 | 150 | 1/16 to 1/4 | Water, steam, animal/vegetable oils, oxygenated solvents. Excellent weather resistance. |
| Natural (Pure Gum) | -20 to 140 | 100 | 1/32 to 1 | Acids, organic salts & alkalis. Non-toxic. Abrasion resistant. Soft. |
| Neoprene | -20 to 170 | 150 | 1/32 to 2 | Oil/gasoline. Excellent weather resistance. |
| Neoprene - Cloth Inserted | -20 to 170 | 150 | 1/32 to 1/4 | Oil/gasoline. Excellent weather resistance. Handles movement. High tensile strength. |
| Nitrile (NBR, Buna-N) | -25 to 170 | 150 | 1/32 to 2 | Oil/Aromatic fuels, mineral, animal and vegetable oils, solvents and hydraulic fluid. Available in commercial, premium and FDA grades. |
| SBR (Red Rubber) | -20 to 170 | 150 | 1/32 to 1/4 | Air, hot/cold water. |
| SBR - Cloth Inserted | -20 to 170 | 150 | 1/16 to 1/4 | Air, hot/cold water, saturated/low pressure steam. Excellent for high compression loads. Handles movement. |
| Silicone | to 400 | 150 | 1/32 to 1/4 | High temperature air or water (not oil or steam). Soft. Available in FDA grade. |
| Vinyl | 20 to 160 | 150 | 1/16 to 1/4 | Water, oxidizing agents. Excellent weather/abrasion resistance. |
| Viton® | 400 | 150 | 1/32 to 1/4 | Oil/Aromatic fuels, mineral, animal and vegetable oils, solvents and hydraulic fluid. |
