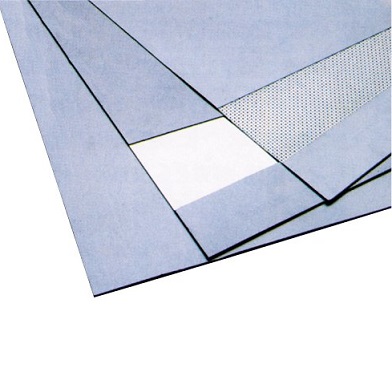

Graphite Sheet with Metal Mesh is made of expanded flexible graphite Kaxite B201, reinforced by a metal mesh of SS304 or SS316 or CS, graphite content of more than 98%, the density is 1.0g/cm
Style KXT B204 Graphite Sheet with Metal Mesh
Description: Reinforced expanded graphite sheet is compressed of expanded graphite sheet and various steel sheets such us tanged, flat or
mesh. Reinforced expanded graphite sheet has character of thermally stability, high strength and no cold flow etc. Our Reinforced expanded
graphite sheet is an ideal material of all kinds of reinforced graphite gaskets engine heat gasket or other. There are many kinds of reinforced
expanded graphite sheet. Such as reinforced expanded graphite sheet with ss304/304L insert,reinforced expanded graphite sheet with ss316
/316L insert, Reinforced xpanded graphite sheet with tinplate insert,ect.
Types of Reinforced Graphite Gasket Sheet：
• Graphite sheet with tanged 0.1mm SS316 inserted
• Graphite sheet with tanged 0.1mm SS304 inserted
• Graphite sheet with tanged 0.2-0.25mm carbon steel inserted
• Graphite sheet with flat 0.05mm SS316 inserted
• Graphite sheet with metal mesh inserted
|
Reinforced inserted material |
Construction |
Stability under compressive stress (N/mm2) |
Temperature |
|
|
|
|
|
In Oxidizing media |
Non Oxidizing media |
|
Tanged carbon steel sheet (Thickness 0.2- 0.25) |
|
>=48 |
-10 -450 |
-10 -550 |
|
AISI 304, 316 Tanged (Thickness 0.1- 0.127) |
|
>=48 |
-240 -450 |
-200-600 |
|
AISI 304, 316 flat steel sheet (Thickness 0.05- 0.7) |
|
>=45 |
-240 -450 |
-200-600 |
|
AISI 304, 316 Mesh |
|
>=40 |
-240 -450 |
-200-600
|
|
Reinforced inserted materials |
Construction |
ASTMF36A-66 Compressibility |
ASTMF36A-66 Recovery |
Sealability(1.5mm)ml/hr |
|
|
N2 |
oil |
||||
|
Tanged carbon steel sheet (Thickness 0.2- 0.25) |
|
30 - 35 |
15 -20 |
30 |
< 0.5 |
|
AISI 304, 316 Tanged (Thickness 0.1- 0.127) |
|
30 - 40 |
15 -30 |
60 |
< 0.5 |
|
AISI 304, 316 flat steel sheet (Thickness 0.05- 0.7) |
|
40 - 50 |
10 -15 |
35 |
< 0.5 |
|
AISI 304, 316 Mesh |
|
30 - 35 |
15 -20 |
7000 |
< 0.5 |
