Braided from high strength acrylic fiber treated with graphite and special lubrication. The graphite increased the temperature and excellent lubricated.
With professional Acrylic Fiber Packing with graphite factory, Ningbo Kaxite Sealing Materials Co.,Ltd is one of the leading China Acrylic Fiber Packing with graphite manufacturers and suppliers.

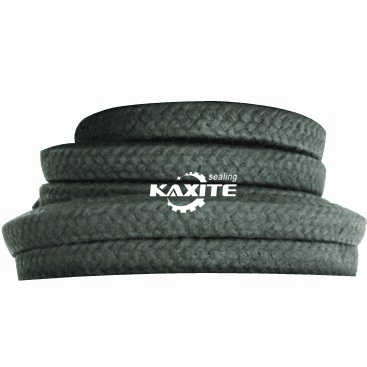

Style KXT P602 Acrylic Fiber Treated With Graphite
Acrylic Fiber Packing with graphite is interlocked braided from Acrylic fiber which is impregnated with a custom made Graphite mix that
increases the service temperature & pressure resistance capability of the packing. It has comparatively better mechanical strength and
chemical resistance as against natural & vegetable fibers. It is a general purpose packing and an economical choice for fluid handling
equipment. It is not meant to be used in food & pharmaceutical industry.Service Media & Applications: Extremely suitable for pumps
and valves handling salt solutions, mild abrasive, mild acids & alkali, brine solution and in water handling equipments.
Advanvages
• Graphite adds the temperature and service pressure
• Does not harden and is not abrasive
• High extrusion resistance
• High quality acrylic fiber
Application
• Pump and valve applications in the chemical industry
• Marine service and many more
• Pulp- and paper mills
• Water, steam, acids
• Chemicals, solvents
• Oil., etc
Main Features:
|
Pressure |
Rotary pump |
20 bar |
|
Reciprocating pump |
100 bar |
|
|
Static Sealing |
180 bar |
|
|
Rotary speed |
12 m/s |
|
|
Density |
1.45/cm3 |
|
|
Temperature |
-23~+300°C |
|
|
PH Value |
2-12 |
|
.
